Model No.: Round Ferrite Magnet
Application: Speaker Magnet, Industrial Magnet, Motor Magnet
Packaging: Carton box size: 35cm*25cm*15cm
Place of Origin: NINGBO/CHINA
Supply Ability: 50000pcs/month
Certificate: ISO 9001:2008
HS Code: 85051110

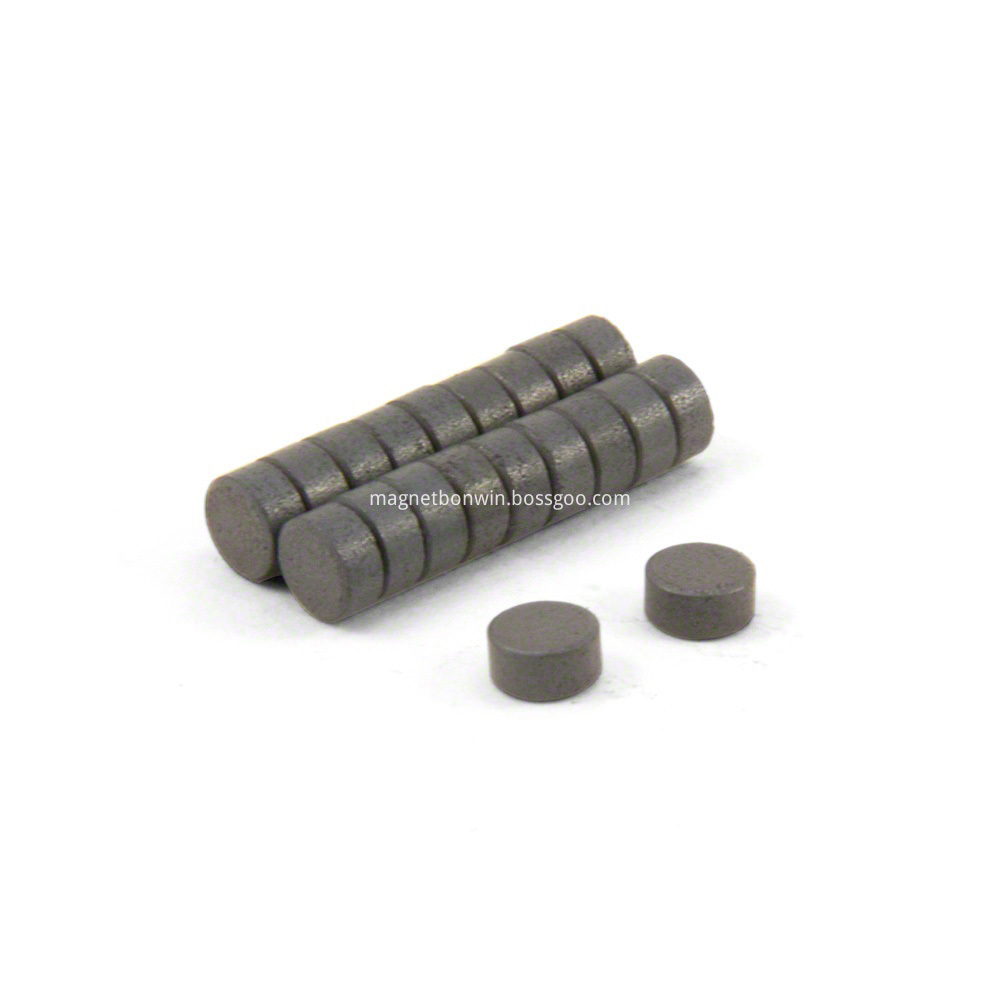

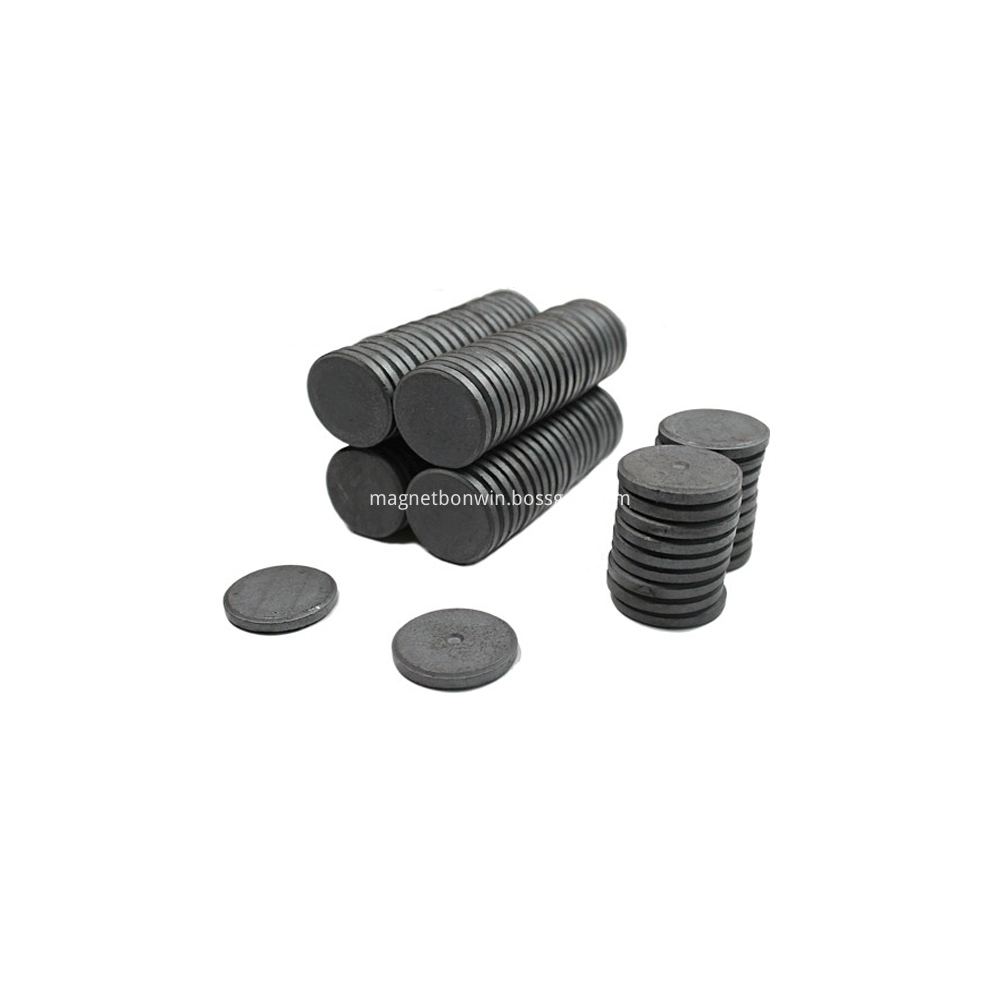

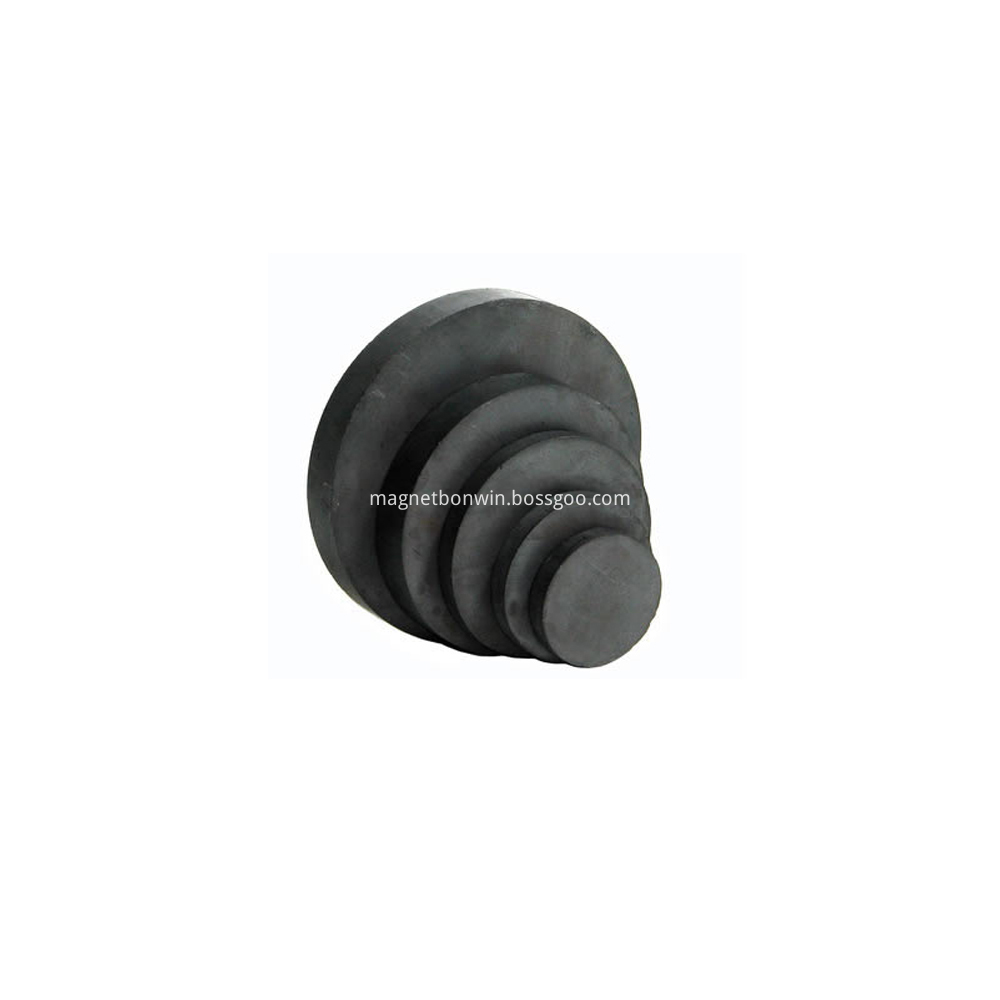

Y35 Hard Sintered Cylinder Ferrite Magnet
Ferrite (ceramic) magnets are essentially composed of oxide materials with barium carbonate or strontium carbonate, manufactured under a powder metallurgical process.
The feature of low recoil permeability, along with the high coercive force, makes them highly resistant to demagnetizing fields. In addition, their relatively low specific density and economical cost are also very attractive to the magnet designers. When designing the ferrite magnets for a particular application, primary consideration should be given to its shape limitation due to the powder metallurgical manufacturing process and the temperature dependence of ferrite materials.
Ferrite magnets have good anti-corrosion performance, no surface treatment needed. There are two manufacturing process for ferrite magnets: dry process and wet process. By dry process, can produce isotropic &anisotropic magnets; by wet process, only anisotropic magnets can be produced. Isotropic ferrite magnets are not oriented and can be magnetized in any direction; anisotropic ferrite magnets are different, they are all oriented in the manufacturing direction, and should be magnetized in the direction of orientation. For dry process, the tool can be changed and developed easily, while for wet process, it is complicated to change the tool and the tooling charge is much higher. At present, we have put our emphasis on arc segment magnets for electric motors, disc magnets and block magnets for special applications.
